Description

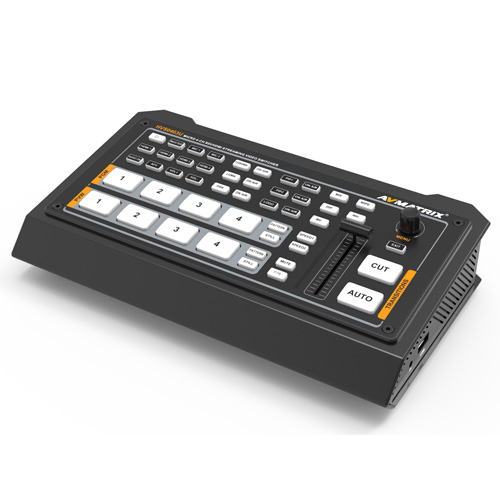

The AVMatrix HVS0401U Micro 4 Channel HDMI/DP Video Switcher is a compact and powerful live production switcher designed for professional video switching, livestreaming, and broadcast applications. With support for up to four video sources, it enables seamless switching between cameras, computers, and other HDMI or DisplayPort devices for smooth multi-camera production.

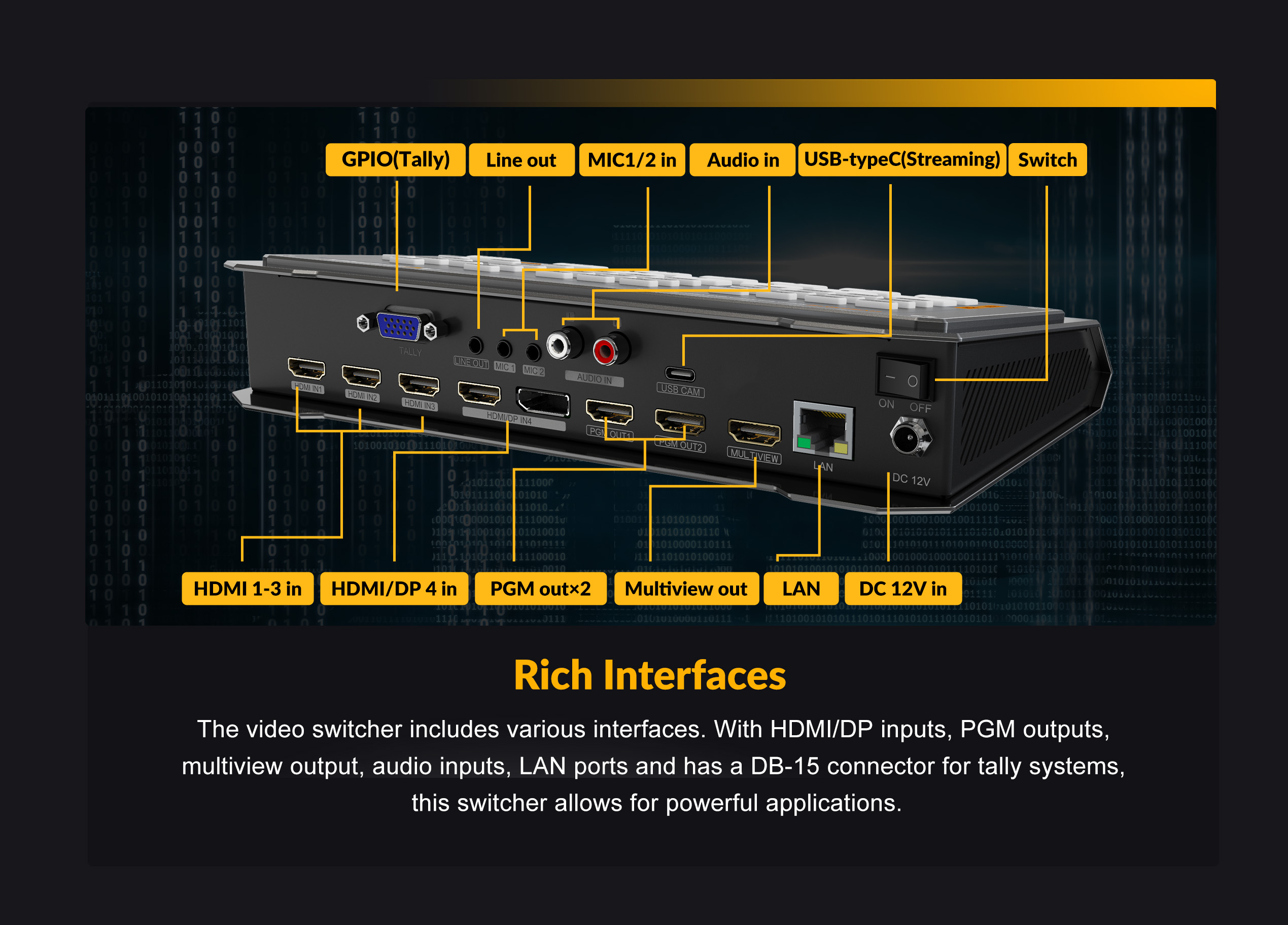

This switcher features three HDMI inputs and one HDMI/DisplayPort input, allowing flexible connection with a wide range of video sources such as cameras, laptops, and media players. It supports video resolutions up to 1080p60, ensuring clear and high-quality video output for professional workflows.

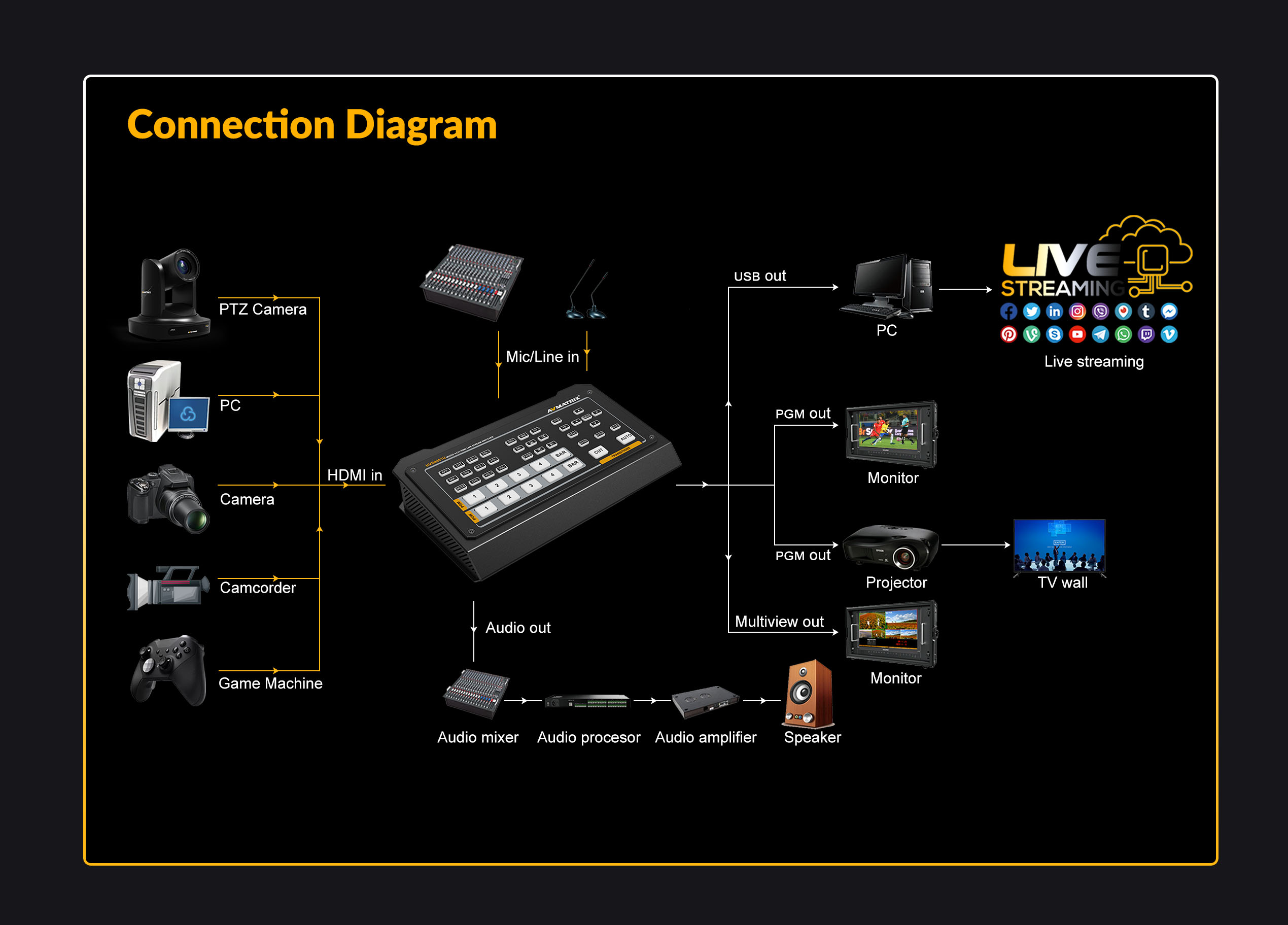

The HVS0401U provides two HDMI program outputs, one HDMI multiview output, and a USB-C capture output, making it ideal for livestreaming directly to a computer or streaming platform without requiring additional capture devices. The integrated multiview display allows users to monitor all input sources simultaneously on a single screen for easier production control.
To enhance production flexibility, the switcher includes professional transition effects such as CUT, AUTO, MIX, FADE, and WIPE, as well as Picture-in-Picture (PiP) functionality for creative layouts. An integrated audio mixer supports microphone, RCA, and HDMI embedded audio inputs, ensuring balanced audio during live broadcasts.
With its compact design and user-friendly controls, the AVMatrix HVS0401U is an ideal solution for live streaming, conferences, education, church production, gaming streams, and small broadcast studios.
Key Features
-
4-channel video switching (3× HDMI + 1× HDMI/DisplayPort input)
-
Supports video formats up to 1080p60
-
2× HDMI program outputs and 1× HDMI multiview output
-
USB-C output for direct livestreaming (UVC capture)
-
Built-in Picture-in-Picture (PiP) with adjustable position and size
-
Professional transition effects: CUT, AUTO, MIX, FADE, WIPE
-
Integrated audio mixer with 3.5mm and RCA inputs
-
Tally interface (GPIO) for live production systems
-
Compact design ideal for live streaming, events, broadcast, and content creation
